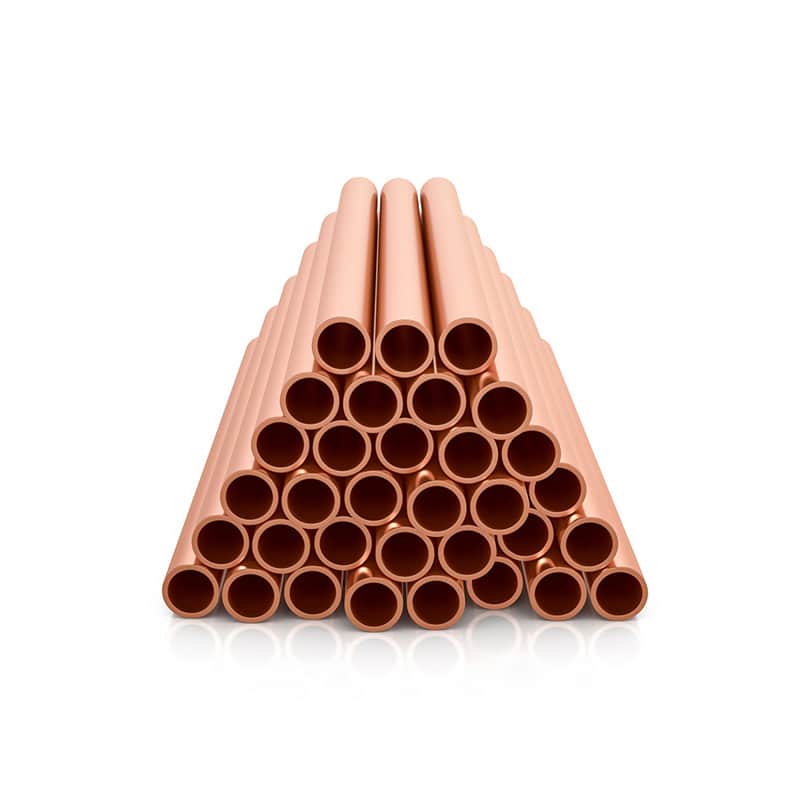

C10200/TU1 Copper Pipe
C10200/TU1 is a high-purity, oxygen-free, phosphorus-free deoxidized copper in vacuum without evaporating elements. It has high electrical and thermal conductivity, good welding performance and excellent welding performance attributes.
Product Description
C10200/TU1 is a high-purity, oxygen-free, phosphorus-free deoxidized copper in vacuum without evaporating elements. It has high electrical and thermal conductivity, good welding performance and excellent welding performance attributes. It has excellent hot and cold forming properties, and has good compression resistance and corrosion resistance, especially in the atmosphere, due to the good adhesion of the oxide layer.
Product Parameters
|
Outer diameter: |
2mm-300mm,or customized |
Wall thickness: |
0.2mm-50mm,or customized |
|
Length: |
Custom |
Standard: |
ASTM,AISI,JIS,GB, DIN,EN |
|
Brand |
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930， C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200, C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000, C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800, C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200， T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,ect. |
||
|
Surface finish: |
Grinding, polishing, brightening, oiling, hair thread, brush, mirror, sandblasting or processing as required |
||
|
Certification: |
ISO.SGS.BV |
Payment Method: |
FOB,CRF,CIF,EXW Acceptable |
|
Port of Loading: |
Any port in China |
Delivery time: |
received.30%After deposit7-15working day |
chemical composition
|
Copper+Silver With Ag: |
Tin Sn: |
Zinc Zn: |
Lead Pb: |
Nickel It is: |
Iron Fe: |
|
99.97 |
0.002 |
0.003 |
0.003 |
0.002 |
0.004 |
|
Antimony Sb: |
Sulphur S: |
Arsenic As: |
Bismuth Bi: |
Oxygen O: |
Phosphorus P: |
|
0.002 |
0.004 |
0.002 |
0.001 |
0.002 |
0.002 |
Mechanical properties
|
Tensile Strength Kb (MPa): |
Elongation D10 (%): |
Density: |
|
≥ 275 |
≥35 |
8.9 |
