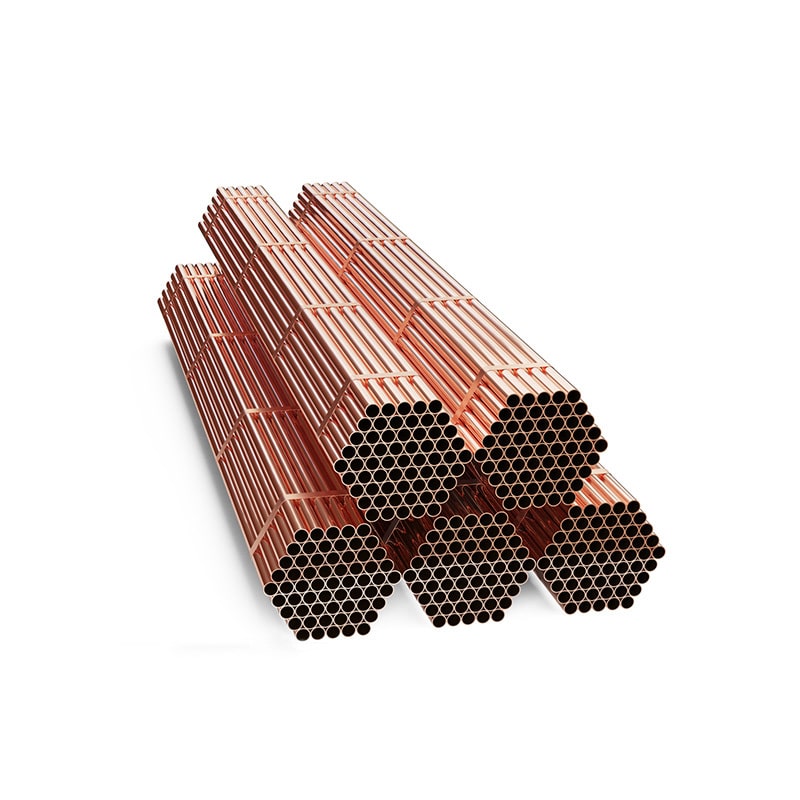

C12200/TP2 Copper Pipe
C12200/TP2 has good welding performance and cold bending performance. Generally, it has no “hydrogen disease” tendency. It can be processed and used in reducing atmosphere, but it is not suitable for processing and using in oxidizing atmosphere
Product Description
C12200/TP2 has good welding performance and cold bending performance. Generally, it has no “hydrogen disease” tendency. It can be processed and used in reducing atmosphere, but it is not suitable for processing and using in oxidizing atmosphere. It is mainly applied in pipe, and can also be supplied in plate, belt or bar and line. Used as gasoline or gas transmission pipe, drain pipe, condenser pipe, mine pipe, condenser, evaporator, heat exchanger, train parts.
Product Parameters
|
Outer diameter: |
2mm-300mm,or customized |
Wall thickness: |
0.2mm-50mm,or customized |
|
Length: |
Custom |
Standard: |
ASTM,AISI,JIS,GB, DIN,EN |
|
Brand |
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930， C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200, C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000, C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800, C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200， T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,ect. |
||
|
Surface finish: |
Grinding, polishing, brightening, oiling, hair thread, brush, mirror, sandblasting or processing as required |
||
|
Certification: |
ISO.SGS.BV |
Payment Method: |
FOB,CRF,CIF,EXW Acceptable |
|
Port of Loading: |
Any port in China |
Delivery time: |
received.30%After deposit7-15working day |
chemical composition
|
Copper+Silver With Ag: |
Tin Sn: |
Phosphorus P: |
Lead Pb: |
Nickel It is: |
Iron Fe: |
|
≥ 99.85 |
≤ 0.01 |
0.013~0.050 |
≤ 0.005 |
≤≤ 0.01 |
≤0.05 |
|
Antimony Sb: |
Sulphur S: |
Arsenic As: |
Bismuth Bi: |
Oxygen O: |
Impurities: |
|
≤0.002 |
≤ 0.005 |
≤ 0.005 |
≤ 0.002 |
≤ 0.01 |
≤ 0.15 |
Mechanical properties
|
Tensile Strength Kb (MPa): |
Elongation D10 (%): |
Hardness: |
|
215~275 |
≥ 25 |
55~100HV |
