PPGI Steel Coil
It usually refers to PPGI coil&PPGI sheet and other steel products. It is based on the galvanized roll, covered with a certain technology and colored paint, giving the product more colors, and this colorful and beautiful surface makes it more widelyused.

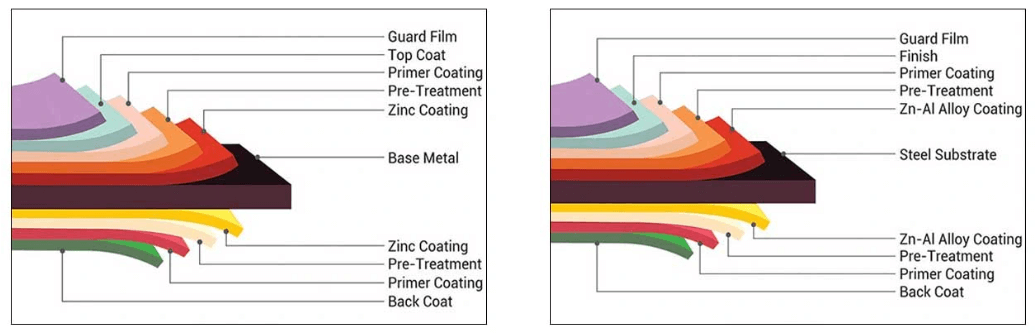

Prepainted steel sheet is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.The base metals for prepainted steel sheet consist of cold rolled, HDG electro-galvanized and Hop-dip zinc-alu-mag base metal. The finish coats of prepainted steel sheets can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc. TEL: +86 188 6159 3531
PPGI Steel Coil Information
It usually refers to PPGI coil&PPGI sheet and other steel products. It is based on the galvanized roll, covered with a certain technology and colored paint, giving the product more colors, and this colorful and beautiful surface makes it more widelyused.
Prepainted steel sheet is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.The base metals for prepainted steel sheet consist of cold rolled, HDG electro-galvanized and Hop-dip zinc-alu-mag base metal. The finish coats of prepainted steel sheets can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.
| Name | PPGI /PPGL Steel Coil Prepainted Galvanized Steel Coil |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Special Use | High-strength Steel Plate |
| PPGI Length | Customer’s Requirement |
| PPGI Thickness | 0.12mm-6.0mm |
| PPGI Width | 600mm-1500mm |
| PPGI Color | According to RAL color or clients sample |
| PPGI Grade | Q195, Q235 |
| SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570 | |
| SGHC SGH340 SGH400 SGH440 SGH490 SGH540 | |
| DX51D DX52D DX53D DX54D | |
| S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD | |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching, Roofing |
| Painting Thickness | PE paint top coating 15-25micron, the back coating is 5-10micron if the back coating is double, thickness can be 22micron |
| Zinc Coating | 99% pure zinc coating, zinc weight from 40GSM to 275 GSM |
| Quality Control | SGS testing, test zinc coating thickness/PE coating thickness/ T testing, and others by every coil |
| PPGI Package | Waterproof paper is inner packing, galvanized steel or coated steel sheet is outer packing, side guard plate, then wrapped by seven steel belt. |
| Certificate | ISO 9001:2008,CE and so on |
PPGI /PPGL Steel Coil Prepainted Galvanized Steel Coil
– Grade: DX51D,DX51D DX52D DX53D DX54DQ235, SGCC, G550, S550, S350, etc.
– Standard: AISI, ASTM, BS, DIN, GB, JIS
– PPGI /PPGL Thickness: 0.15mm-1.2mm
– PPGI /PPGL Width: 750mm-1250mm ,also available for strip 28mm-600mm
– Tolerance: ± 1%
– PPGI /PPGL Color: According to RAL color or clients sample
– Processing Service: Bending, Welding, Decoiling, Cutting, Punching, Roofing
Detailed Photos

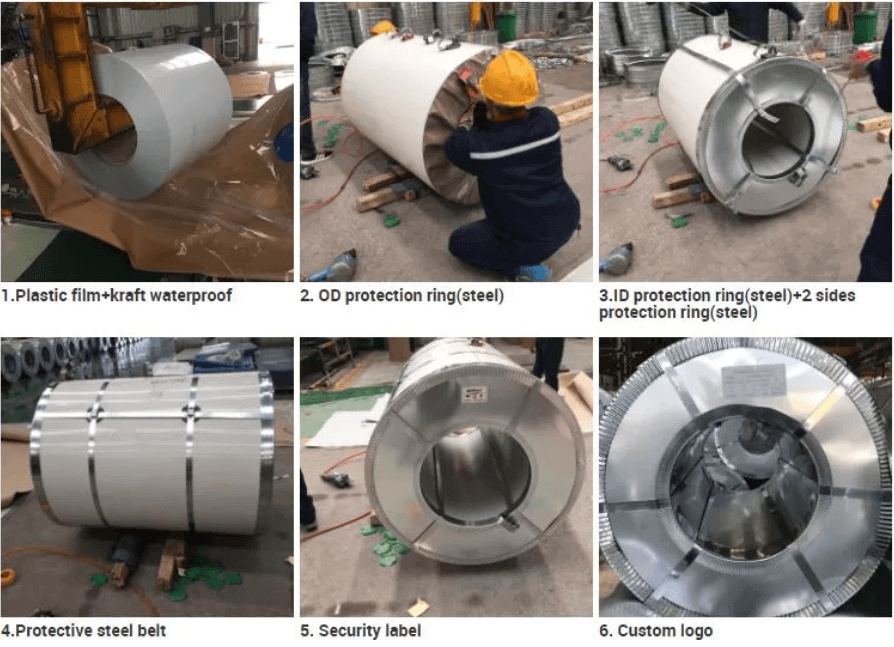

Packaging & Shipping
FAQ:
Q:What kind of work does your company do?
A:Our company is a professional manufacturer.
We mainly produces stainless steel plate/pipe/coil/round bars,as well as aluminum plate/pipe/coil/bar
Q:What are the advantages of your company?
A: (1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product’s quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q:What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance based on BL copy or LC at sight.
Q:What about your price?
A:Our price is very competitive because we are a factory.
Pls feel free to contact us if you are interested in our products.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality assurance.Usually the delivery time is within5 days after we received your deposit.
